📝 编写一个hello_world应用

本示例将演示如何在开发板上运行第一个应用程序,输出“Hello World”。

一、编写源码

  1. 确定目录结构。

    开发者编写业务时,务必先在./applications/BearPi/BearPi-HM_Micro/samples路径下新建一个目录(或一套目录结构),用于存放业务源码文件。

    例如:在app下新增业务my_first_app,其中hello_world.c为业务代码,BUILD.gn为编译脚本,具体规划目录结构如下:

    .
    └── applications
        └── BearPi
            └── BearPi-HM_Micro
                └── samples
                    │── my_first_app
                       │── hello_world.c
                       └── BUILD.gn


  2. 编写业务代码。

    在hello_world.c中编写业务代码。

    #include <stdio.h>

    int main(int argc, char **argv)
    {
        printf("\n************************************************\n");
        printf("\n\t\tHello BearPi!\n");
        printf("\n************************************************\n\n");

        return 0;
    }

  3. 编写将构建业务代码的BUILD.gn文件。

    如步骤1所述,BUILD.gn文件由三部分内容(目标、源文件、头文件路径)构成,需由开发者完成填写。以my_first_app为例,需要创建./applications/BearPi/BearPi-HM_Micro/samples/my_first_app/BUILD.gn,并完如下配置。

    import("//build/lite/config/component/lite_component.gni")

    executable("hello_world_lib") {
        output_name = "hello_world"
        sources = [ "hello_world.c" ]
        include_dirs = []
        defines = []
        cflags_c = []
        ldflags = []
    }

    lite_component("my_app") {
        features = [
            ":hello_world_lib",
        ]
    }

    • 首先导入 gni 组件,将源码hello_world.c编译成hello_world_lib库文件

    • 然后将hello_world_lib打包成 lite_component,命名为my_app组件。

    • 输出的可执行文件名称由output_name定义为hello_world

  4. 添加新组件

    修改文件build/lite/components/applications.json,添加组件my_sample的配置,如下所示为applications.json文件片段,"##start##"和"##end##"之间为新增配置("##start##"和"##end##"仅用来标识位置,添加完配置后删除这两行):

    {
    "components": [
        ##start##
        {
            "component": "my_sample",
            "description": "my samples",
            "optional": "true",
            "dirs": [
            "applications/BearPi/BearPi-HM_Micro/samples/my_first_app"
            ],
            "targets": [
            "//applications/BearPi/BearPi-HM_Micro/samples/my_first_app:my_app"
            ],
            "rom": "",
            "ram": "",
            "output": [],
            "adapted_kernel": [ "liteos_a" ],
            "features": [],
            "deps": {
            "components": [],
            "third_party": [ ]
            }
        },
        ##end##
        {
        "component": "bearpi_sample_app",
        "description": "bearpi_hm_micro samples.",
        "optional": "true",
        "dirs": [
            "applications/BearPi/BearPi-HM_Micro/samples/launcher",
            "applications/BearPi/BearPi-HM_Micro/samples/setting"
        ],
        "targets": [
            "//applications/BearPi/BearPi-HM_Micro/samples/launcher:launcher_hap",
            "//applications/BearPi/BearPi-HM_Micro/samples/setting:setting_hap"
        ],
        "rom": "",
        "ram": "",
        "output": [
            "launcher.so",
            "setting.so"
        ],
        "adapted_kernel": [ "liteos_a","linux" ],
        "features": [],
        "deps": {
            "third_party": [
            "bounds_checking_function",
            "wpa_supplicant"
            ],
            "kernel_special": {},
            "board_special": {},
            "components": [
            "aafwk_lite",
            "appexecfwk_lite",
            "surface",
            "ui",
            "graphic_utils",
            "kv_store",
            "syspara_lite",
            "permission",
            "ipc_lite",
            "samgr_lite",
            "utils_base"
            ]
        }
        },

  5. 修改单板配置文件

    修改文件vendor/bearpi/bearpi_hm_micro/config.json,新增my_sample组件的条目,如下所示代码片段为applications子系统配置,"##start##"和"##end##"之间为新增条目("##start##"和"##end##"仅用来标识位置,添加完配置后删除这两行):

    {
    "subsystem": "applications",
        "components": [
          { "component": "bearpi_sample_app", "features":[] },
        ##start##
          { "component": "my_sample", "features":[] },
        ##end##
          { "component": "bearpi_screensaver_app", "features":[] }
        ]
      },


二、运行测试

示例代码编译、烧录后,在设备启动的shell窗口输入指令“./bin/hello_world”执行写入的demo程序,会显示如下结果:

三、总结

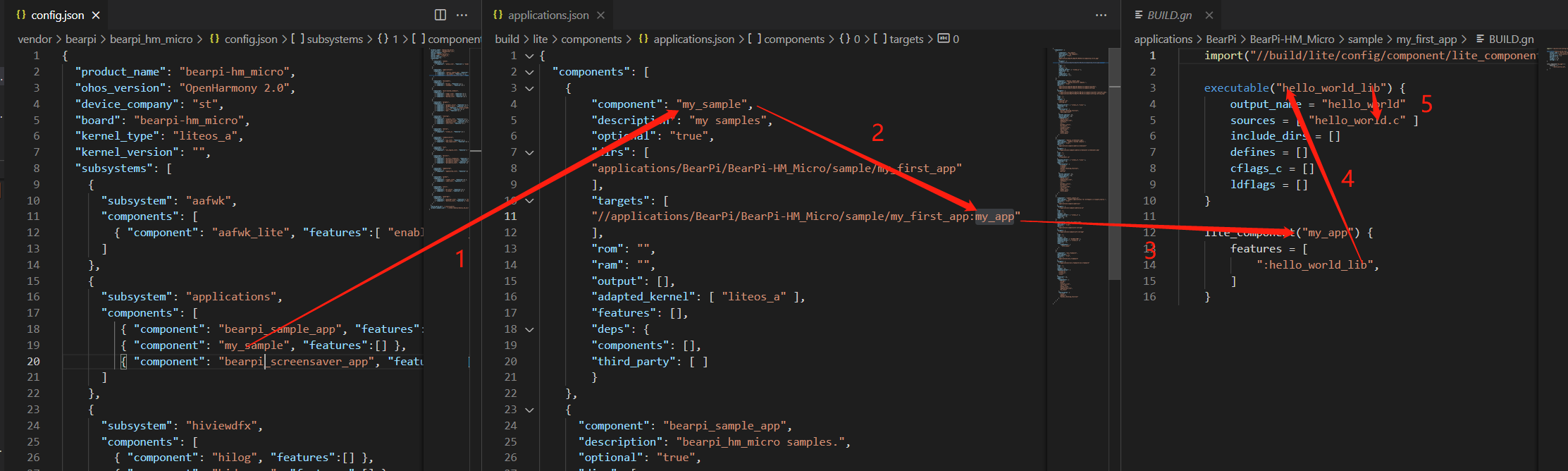

一个.c文件想要编译进系统可以总结为以下流程:

  1. 在config.json中添加"my_sample"组件,"my_sample"组件在applications.json中被定义。
  2. 在my_sample的targets里面添加"my_app"的lite_component名称
  3. "my_app"字段链接到my_first_app文件下BUILD.gn里面的lite_component。
  4. lite_component里指定lib库为"hello_world_lib"。
  5. 通过hello_world_lib里面sources来指定要编译的.c文件,并通过output_name来指定生成的可执行程序名称。

在此希望开发者能仔细琢磨并掌握整个流程,有利于学习Openharmomy的编译框架,以及为后续自主开发应用打下基础
